URBAN LIGHTNESS In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuverered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride - with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.
ENOUGH ENERGY / MINIMALISM Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.

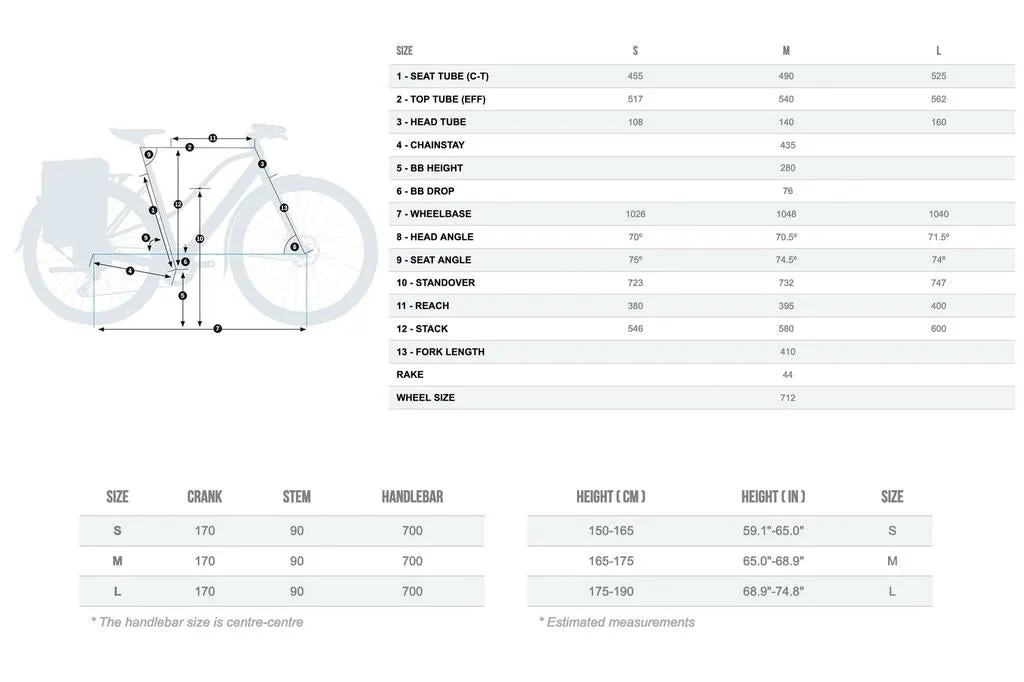

URBAN GEOMETRY The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.
CONECTIVITY AND GPS NAVIGATION WITH OFF LINE MAPS Connect your smartphone to the EBikeMotion app and enjoy indepth system information plus ride and training details. Add your smartphone mount to Vibe´s handlebars and navigate new streets with ease thanks to the full turn-by-turn GPS with fully offline maps.
SPECIFICATIONS Frame: Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. Crankset: OC 42t, w/Chainguard Headset: Acros Alloy 1-1/2" Internal Cable Routing Handlebar: Alloy 31.8mm 12mm Rise 700mm Stem: OC1 31.8mm interface -6º Shifters: Shimano Deore M4100 Brakes: Magura MT30 Hydraulic Disc Easy Route Connection Cassette: Shimano CS-M4100 11-46t 10-Speed Rear derailleur: Shimano Deore M5120 SGS Shadow Plus Chain: KMC X10 Wheels: Ready GR Tyres: Kenda K1052 700x45C Reflective type puncture protection Pedals: VP-537 Black Seatpost: Alloy 27.2 Offset 20 Saddle: Selle Royal Lift 1404 HRN 266x170mm Rear carrier: Orbea Vibe rear luggage carrier (Max:15Kg) Mudguard: CURANA Apollo 55mm Front Position Light: On head tube, COB Led, On/Off, 60 Lumen, ECE50. Front light: Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens Rear light: Lezyne FENDER STVZO Quick stand: Ursus Mooi R90 rear alloy adjustable Motor: Mahle motor hub X35 Plus 25kmh Battery: Mahle 36V/6.9A 248Wh ANT CHARGER: Mahle X35 Remote: Mahle iWoc TRIO Front Wheel: Axle Orbea Thru Axle 12x100mm M12x2 P1 Hollow Bell: Knog OI Classic
